Sanitary Eductors

Operation principle

Conveying eductors enable the use of low pressure air to be used to move powders, pellets, and bulk solids with no moving parts. Conveying eductors have a major advantage over rotary airlocks.

  • No maintenance as there are no moving parts
  • No blow-back, dry bulk is actually sucked into the line
  • Very little product degradation as there is no mechanical shearing
Shéma éducteur

Specifications

  • No moving parts
  • Low cost
  • Heavy duty construction

Options

  • Stainless steel construction

Dimensions

In Inches
Model L1 L2 L3 H1 H2 øD (Tubes)
E20-S 14,65 5,32 9,34 4,50 3,50 2
E25-S 17,40 6,82 10,59 4,75 3,50 2,5
E30-S 22,07 7,74 14,34 5,25 3,75 3
E40-S 28,01 8,17 19,85 6,50 4,50 4
E60-S 41,10 14,21 26,89 11,875 8,875 6
Shema

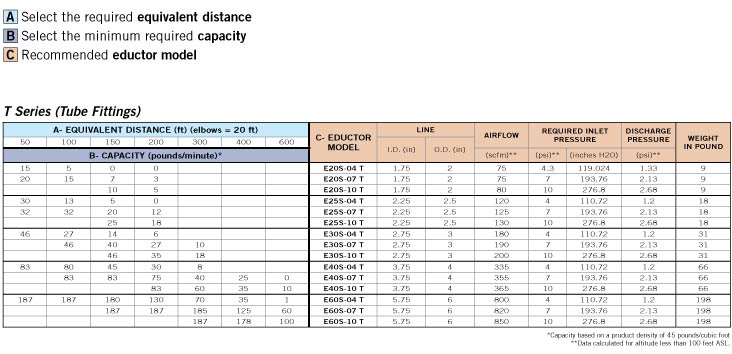

Selection Chart

Click here to enlarge the selection charts.
Sanitary Eductor

T Series Eductor Price List

Model Stainless Steel
E20-S 2388,00
E25-S 3116,00
E30-S 5109,00
E40-S 6757,00
E60-S 13 191,00
* Call Factory

Blower Price List

Blower Model Price
RB-50-7AU *
3M-AP200 *
RB60-6AU *
4M-AP250 *
5M-BP400 *
HB-939 *
6M-BP500 *
6M-CP500 *
7M-CP600 *
* Call Factory

Enclosure Price List

Acoustical Enclosure Model Price
CIA100V *
CIA100 *
CIB100V *
CIB100 *
CIC100V *
CIC100 *
* Call Factory
Selection Chart

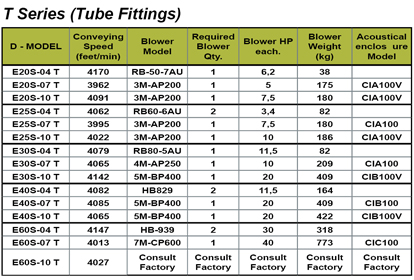

Blower and Acoustical Enclosure Selection Chart

Blower and Acoustical
